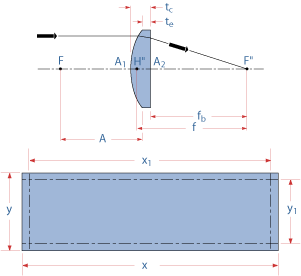

Plano-Convex Cylidrical Lenses

Specifications
Effective Focal Length (EFL): +- 2%
Length: +- .1
Width: +- .14
Center Thickness (CT): +- .5
Cosmetics: 60/40
Surface Quality: Plano surface l/4 per 10mm diameter,
cylindrical surface l/ 2 in width direction and l/4 per
centimeter in length direction at 546.1nm.
Centration: < 3 arc minutes
Designed Wavelength: 587.6nm

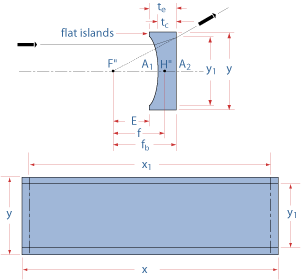

Plano- Concave Cylindrical Lenses

Specifications
Effective Focal Length (EFL): +- 2%
Length: +- .1
Width: +- .14
Center Thickness (CT): +- .5
Cosmetics: 60/40
Surface Quality: Plano surface l/4 per 10mm diameter,
cylindrical surface
l/ 2 in width direction and l/4 per centimeter in length
direction at 546.1nm.
Centration: < 3 arc minutes
Designed Wavelength: 587.6nm

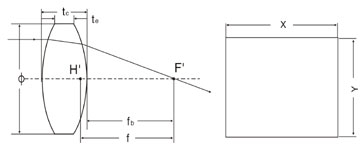

Biconvex Cylindrical Lenses

Specifications
Effective Focal Length (EFL): +- 2%
Length: +- .1
Width: +- .14
Center Thickness (CT): +- .5
Cosmetics: 60/40
Surface Quality: Plano surface l/4 per 10mm diameter,
cylindrical surface
l/ 2 in width direction and l/4 per centimeter in length
direction at 546.1nm.
Centration: < 3 arc minutes
Designed Wavelength: 587.6nm

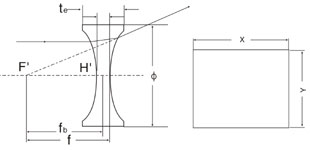

Biconcave Cylindrical Lenses

Specifications
Effective Focal Length (EFL): +- 2%
Length: +- .1
Width: +- .14
Center Thickness (CT): +- .5
Cosmetics: 60/40
Surface Quality: Plano surface l/4 per 10mm diameter,
cylindrical surface
l/ 2 in width direction and l/4 per centimeter in length
direction at 546.1nm.
Centration: < 3 arc minutes
Designed Wavelength: 587.6nm

Hemisphere Cylindrical Lenses

Dia : +- .1
Height: +- .14
Center Thickness (CT): +- .5
Cosmetics: 60/40
Surface Quality: Plano surface l/4 per 10mm diameter,
cylindrical surface
Centration: < 3 arc minutes
