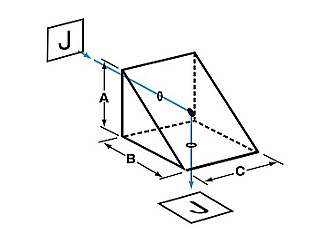

Right Angle Prisms

Specifications
Dimensions: +/- .2
Angles: +/- 3 arc minutes
Cosmetics: 60/40 scratch/dig
Surface Flatness: ? wave @ 546.1 nm
Clear Aperture: 90% of surface area
Bevel Width: .25
All dimensions are in millimeters.

Penta prisms

Specifications
Dimensions: +-.15mm
Deviatiopn: 90 degrees < 3 arc minutes
Cosmetics: 60/40
Surface Flatness: ? wave @ 546.1nm
Clear Aperture: 90% of surface area

Wedge

Specifications
Diameter (DIA): +0/-.
Thickness: +/- .
Wedge Angle: +/- 30 arc second
Cosmetics: 60/40 scratch/di
Surface Flatness: ? wave @ 546.1n
Clear Aperture: 90% of diameter

Roof Prisms

Specifications
Dimensions: +/- .2
Angles: +/- 3 arc minutes
Cosmetics: 60/40 scratch/dig
Surface Flatness: ? wave @ 546.1 nm
Clear Aperture: 90% of surface area
Bevel Width: .25
All dimensions are in millimeters.

Dove Prisms

Specifications
Dimensions: +-.15mm
Angles: +-3 arc minutes
Cosmetics: 60/40
Surface Flatness: ? wave @ 546.1nm
Clear Aperture: 90% of surface area
